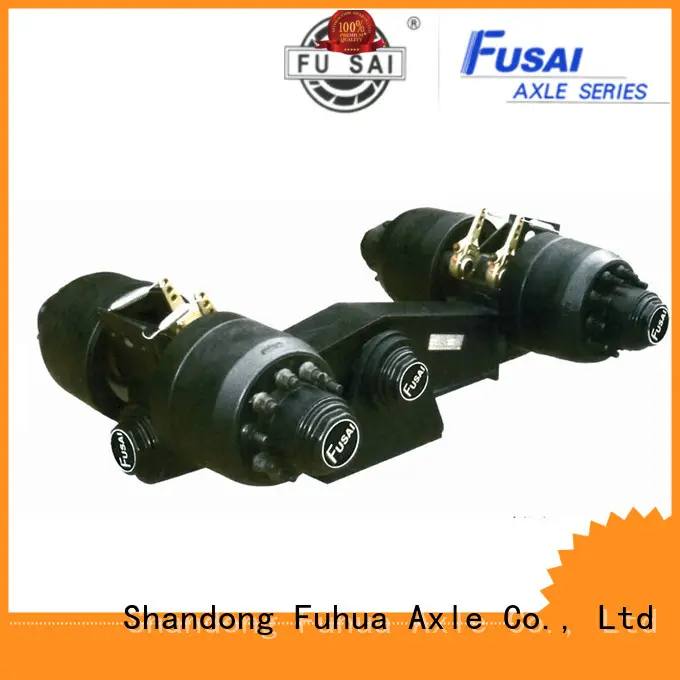

standard cantilever suspension contact now for merchant
1. This FUSAI cantilever suspension design is composed of functional grade materials.
2. The product is safe. It has passed the composition testing which guarantees it to avoid any materials that skins might be allergic to.
3. This product has high resistance to bacteria. Thanks to its clear surface, it will not allow any dirt or spills to sit and serve as a breeding site for germs.
4. Being able to support the spine and offer comfort, this product meets the sleep needs of most people, particularly those who are suffering from back issues.
5. Containing zero methanal or other chemical materials which are harmful to people, this product has no health influence on people.
The cantilever suspension is mainly used as the connecting parts between trailer axle and suspension. Generally, anti-wear sliding bearings (with copper bush or cast iron bush), instead of leaf springs, are used as the couplers and supporting devices. It is mainly used as super heavy duty suspension for lowbed trailer. Our cantilever suspension works well on very rough ground for hauling heavy loads. The specially designed components and low abrasion wiggling suspension pedestal can guaranteed the good transverse and longitude axle compensation on bad road conditions. This kind of trailer suspension has been widely used in many fields like military industry, engineering project, forestry, oil industry, chemical production, and so on. Our technical team can design and manufacture custom cantilever suspension according to your application.
Two-Axle Cantilever Suspension | |||||||||||||||
Model | Central Distance(mm) | Rated Load(kg) | Track(mm) | Wheel Base(mm) | Total Width(mm) | E(mm) | Central Height(mm) | α | β | Brake Size | Wheel Fixing | Tyre | |||
Type | P.C.D | H | Stud | ||||||||||||
FSCS40ANS1 | 1540 | 40000 | 815 | 1220 | 2860 | 220 | 380 | 9° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 8.25-15 |
FSCS40AWS1 | 1600 | 40000 | 865 | 1220 | 2980 | 220 | 190-220 | 7°-9° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 8.25-15 |
FSCS60ANS1 | 1540 | 60000 | 815 | 1362 | 2860 | 220 | 380 | 7° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 407 |
| FSCS60AWS1 | 1600 | 60000 | 865 | 1362 | 2965 | 235 | 190-220 | 7°-9° | 6° | Φ420×180 | 6.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 8.25-20 |
| FSCS70ANS1 | 1540 | 70000 | 880 | 1362 | 2860 | 220 | 335 | 6° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 413 |
| FSCS70AWS1 | 1700 | 70000 | 900 | 1362 | 3190 | 210 | 190-220 | 7°-9° | 5° | Φ420×180 | 7.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 9.00-20 |
| FSCS80AN1 | 1840 | 80000 | 965 | 1550 | 3450 | 225 | 190-220 | 5°-9° | 5° | Φ420×220 | 8.0-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 11.00-20 |
| FSCS100AWS1 | 2020 | 100000 | 1100 | 1550 | 3786 | 255 | 190-220 | 7° | 6° | Φ420×220 | 8.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 12.00-20 |
◪ 1.The suspension is made from durable parts. Our efficient quality control system can ensure that our products can work normally even in very bad working conditions.
◪ 2.Excellent maneuverability is available for our cantilever suspension.
◪ 3.The well designed spinning suspension pedestal has ensured the excellent height difference on cross-country conditions.
◪ 4.We can provide custom trailer suspension solution according to your requirements. Just contact us at any time.
Company Features
1. Shandong Fuhua Axle Co., Ltd is an experienced and reliable company in designing, manufacturing and distributing cost-effective products such as cantilever suspension design .
2. Our factory has the most advanced production equipment. They can ensure the highest quality and fastest production, especially for mass production.
3. Good corporate culture is an important guarantee for the development of FUSAI. Call! Shandong Fuhua Axle Co., Ltd will provide more cost-effective products as well as more perfect and faster service. Call!
