Two-Axle Cantilever Suspension

Brand:

Fusai

Model:

＞10pcs

Place of Origin:

Qingdao, China

Delivery Time:

20 Days

Payment Terms:

T/T

Inquiry

Write a Review

Product Information

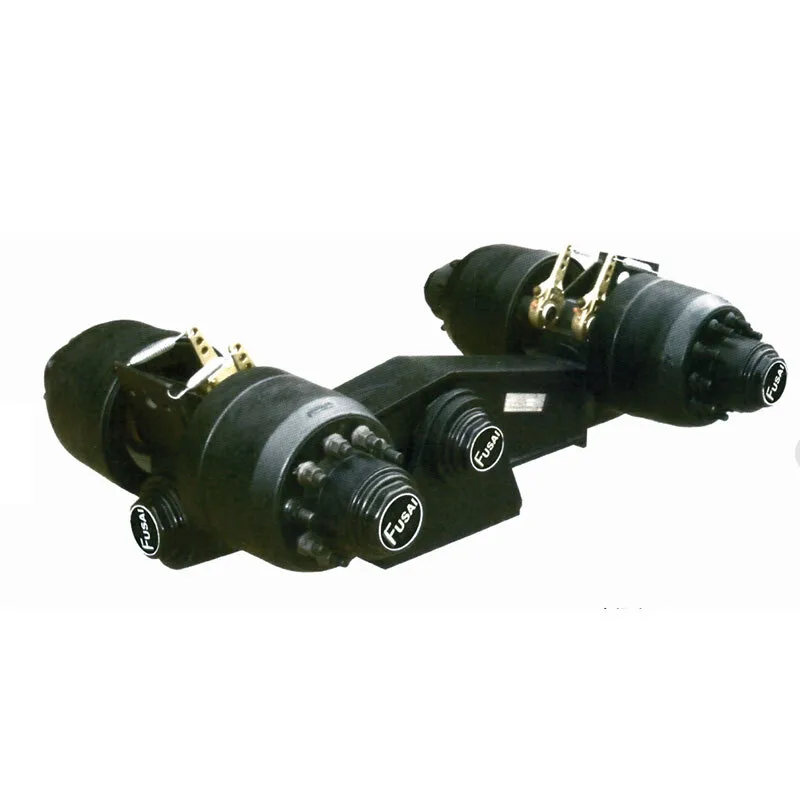

Two-Axle Cantilever Suspension

Cantilever Suspension
The cantilever suspension is mainly used as the connecting parts between trailer axle and suspension. Generally, anti-wear sliding bearings (with copper bush or cast iron bush), instead of leaf springs, are used as the couplers and supporting devices. It is mainly used as super heavy duty suspension for lowbed trailer. Our cantilever suspension works well on very rough ground for hauling heavy loads. The specially designed components and low abrasion wiggling suspension pedestal can guaranteed the good transverse and longitude axle compensation on bad road conditions. This kind of trailer suspension has been widely used in many fields like military industry, engineering project, forestry, oil industry, chemical production, and so on. Our technical team can design and manufacture custom cantilever suspension according to your application.

Product parameters

Two-Axle Cantilever Suspension
Model	Central Distance(mm)	Rated Load(kg)	Track(mm)	Wheel Base(mm)	Total Width(mm)	E(mm)	Central Height(mm)	α	β	Brake Size	Wheel Fixing				Tyre
Model	Central Distance(mm)	Rated Load(kg)	Track(mm)	Wheel Base(mm)	Total Width(mm)	E(mm)	Central Height(mm)	α	β	Brake Size	Type	P.C.D	H	Stud	Tyre
FSCS40ANS1	1540	40000	815	1220	2860	220	380	9°	6°	Φ311×190	6.5-15	Φ225	Φ176	10－M22×1.5 ISO	8.25-15
FSCS40AWS1	1600	40000	865	1220	2980	220	190-220	7°-9°	6°	Φ311×190	6.5-15	Φ225	Φ176	10－M22×1.5 ISO	8.25-15
FSCS60ANS1	1540	60000	815	1362	2860	220	380	7°	6°	Φ311×190	6.5-15	Φ225	Φ176	10－M22×1.5 ISO	407
FSCS60AWS1	1600	60000	865	1362	2965	235	190-220	7°-9°	6°	Φ420×180	6.5-20	Φ335	Φ281	10－M22×1.5 ISO	8.25-20
FSCS70ANS1	1540	70000	880	1362	2860	220	335	6°	6°	Φ311×190	6.5-15	Φ225	Φ176	10－M22×1.5 ISO	413
FSCS70AWS1	1700	70000	900	1362	3190	210	190-220	7°-9°	5°	Φ420×180	7.5-20	Φ335	Φ281	10－M22×1.5 ISO	9.00-20
FSCS80AN1	1840	80000	965	1550	3450	225	190-220	5°-9°	5°	Φ420×220	8.0-20	Φ335	Φ281	10－M22×1.5 ISO	11.00-20
FSCS100AWS1	2020	100000	1100	1550	3786	255	190-220	7°	6°	Φ420×220	8.5-20	Φ335	Φ281	10－M22×1.5 ISO	12.00-20

Product Feature

◪ 1.The suspension is made from durable parts. Our efficient quality control system can ensure that our products can work normally even in very bad working conditions.
◪ 2.Excellent maneuverability is available for our cantilever suspension.
◪ 3.The well designed spinning suspension pedestal has ensured the excellent height difference on cross-country conditions.
◪ 4.We can provide custom trailer suspension solution according to your requirements. Just contact us at any time.
