standard cantilever kit get price for businessman FUSAI
1. The production of FUSAI cantilever kit is greatly improved and it reduces labor costs. This product comes in various specifications for satisfying different needs
2. This product offers great possibilities for users and has a wide range of applications in the global market. Customization based on your desired parameters is available to this product
3. The product features a robust design. Its main frame is made of stainless steels and the base is supported by an aluminum plate. The product can be assembled and installed by our technicians upon your request
4. The product has a long service life. It is not likely to be affected by excessive operating temperatures, overload, and deep discharge. It is suited for manufacturers of trailers, trailers rental company or logistics companies
5. The good thing about this product is that it does not corrode. It has coatings that provide a robust level of protection against corrosion for surface operating in highly corrosive environments. It comes with a one-year or 100,000km warranty, whichever comes first

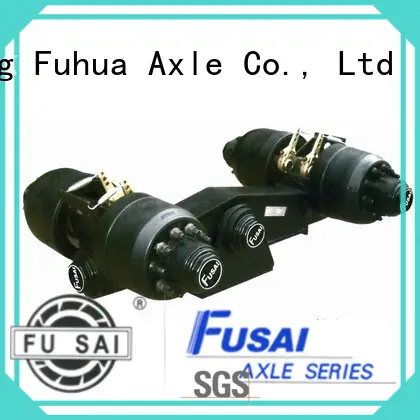

The cantilever suspension is mainly used as the connecting parts between trailer axle and suspension. Generally, anti-wear sliding bearings (with copper bush or cast iron bush), instead of leaf springs, are used as the couplers and supporting devices. It is mainly used as super heavy duty suspension for lowbed trailer. Our cantilever suspension works well on very rough ground for hauling heavy loads. The specially designed components and low abrasion wiggling suspension pedestal can guaranteed the good transverse and longitude axle compensation on bad road conditions. This kind of trailer suspension has been widely used in many fields like military industry, engineering project, forestry, oil industry, chemical production, and so on. Our technical team can design and manufacture custom cantilever suspension according to your application.
Two-Axle Cantilever Suspension | |||||||||||||||
Model | Central Distance(mm) | Rated Load(kg) | Track(mm) | Wheel Base(mm) | Total Width(mm) | E(mm) | Central Height(mm) | α | β | Brake Size | Wheel Fixing | Tyre | |||
Type | P.C.D | H | Stud | ||||||||||||
FSCS40ANS1 | 1540 | 40000 | 815 | 1220 | 2860 | 220 | 380 | 9° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 8.25-15 |
FSCS40AWS1 | 1600 | 40000 | 865 | 1220 | 2980 | 220 | 190-220 | 7°-9° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 8.25-15 |
FSCS60ANS1 | 1540 | 60000 | 815 | 1362 | 2860 | 220 | 380 | 7° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 407 |
| FSCS60AWS1 | 1600 | 60000 | 865 | 1362 | 2965 | 235 | 190-220 | 7°-9° | 6° | Φ420×180 | 6.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 8.25-20 |
| FSCS70ANS1 | 1540 | 70000 | 880 | 1362 | 2860 | 220 | 335 | 6° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 413 |
| FSCS70AWS1 | 1700 | 70000 | 900 | 1362 | 3190 | 210 | 190-220 | 7°-9° | 5° | Φ420×180 | 7.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 9.00-20 |
| FSCS80AN1 | 1840 | 80000 | 965 | 1550 | 3450 | 225 | 190-220 | 5°-9° | 5° | Φ420×220 | 8.0-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 11.00-20 |
| FSCS100AWS1 | 2020 | 100000 | 1100 | 1550 | 3786 | 255 | 190-220 | 7° | 6° | Φ420×220 | 8.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 12.00-20 |
◪ 1.The suspension is made from durable parts. Our efficient quality control system can ensure that our products can work normally even in very bad working conditions.
◪ 2.Excellent maneuverability is available for our cantilever suspension.
◪ 3.The well designed spinning suspension pedestal has ensured the excellent height difference on cross-country conditions.
◪ 4.We can provide custom trailer suspension solution according to your requirements. Just contact us at any time.
Company Features
1. Shandong Fuhua Axle Co., Ltd is globally competitive in the cantilever suspension industry.
2. The quality of cantilever rear suspension has been guaranteed by advanced and practical.
3. The FUSAI brand hopes to become one of the leading companies in the cantilever kit industry. Call!
