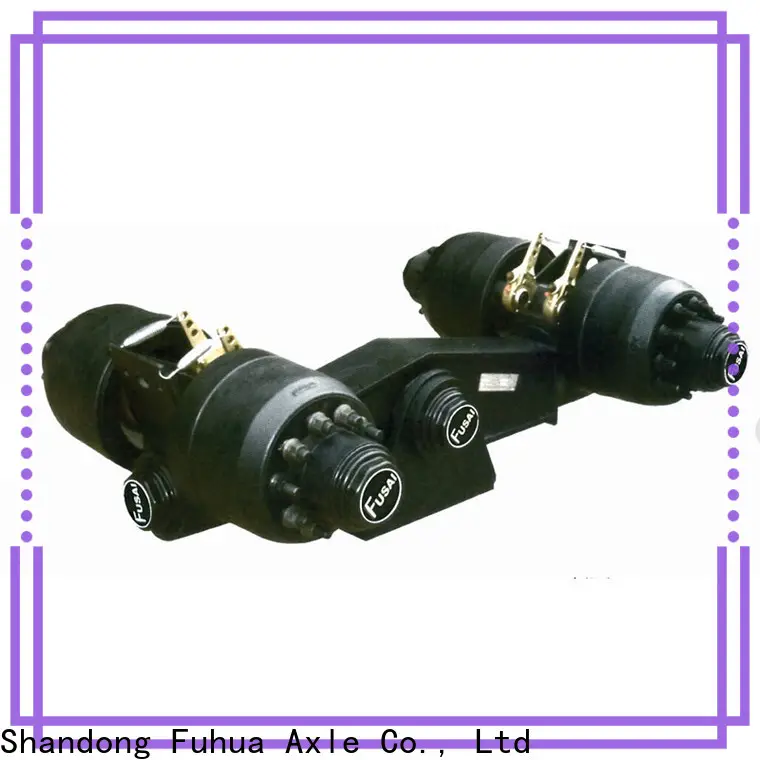

FUSAI premium option cantilever suspension kit manufacturer
1. All materials of FUSAI cantilever rear suspension kit are strictly tested in conformity with the international standards. Its cost-efficiency, strength, and precision have made it a hit in Frankfurt trade fair
2. Shandong Fuhua Axle Co., Ltd has built a strict QC system to ensure quality of cantilever suspension kit . The product, when custom made, will be delivered within 60 days
3. Strict quality testing has been carried out to ensure the quality of the product. This product is suited for trailers used in a wide range of industries like military transportation, engineering projects, forestry, and chemical production
4. Our quality management system ensures that the product meets with the international quality standards. The product has found its way to users of trailers in tens of countries
The cantilever suspension is mainly used as the connecting parts between trailer axle and suspension. Generally, anti-wear sliding bearings (with copper bush or cast iron bush), instead of leaf springs, are used as the couplers and supporting devices. It is mainly used as super heavy duty suspension for lowbed trailer. Our cantilever suspension works well on very rough ground for hauling heavy loads. The specially designed components and low abrasion wiggling suspension pedestal can guaranteed the good transverse and longitude axle compensation on bad road conditions. This kind of trailer suspension has been widely used in many fields like military industry, engineering project, forestry, oil industry, chemical production, and so on. Our technical team can design and manufacture custom cantilever suspension according to your application.
Two-Axle Cantilever Suspension | |||||||||||||||
Model | Central Distance(mm) | Rated Load(kg) | Track(mm) | Wheel Base(mm) | Total Width(mm) | E(mm) | Central Height(mm) | α | β | Brake Size | Wheel Fixing | Tyre | |||
Type | P.C.D | H | Stud | ||||||||||||
FSCS40ANS1 | 1540 | 40000 | 815 | 1220 | 2860 | 220 | 380 | 9° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 8.25-15 |
FSCS40AWS1 | 1600 | 40000 | 865 | 1220 | 2980 | 220 | 190-220 | 7°-9° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 8.25-15 |
FSCS60ANS1 | 1540 | 60000 | 815 | 1362 | 2860 | 220 | 380 | 7° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 407 |
| FSCS60AWS1 | 1600 | 60000 | 865 | 1362 | 2965 | 235 | 190-220 | 7°-9° | 6° | Φ420×180 | 6.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 8.25-20 |
| FSCS70ANS1 | 1540 | 70000 | 880 | 1362 | 2860 | 220 | 335 | 6° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 413 |
| FSCS70AWS1 | 1700 | 70000 | 900 | 1362 | 3190 | 210 | 190-220 | 7°-9° | 5° | Φ420×180 | 7.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 9.00-20 |
| FSCS80AN1 | 1840 | 80000 | 965 | 1550 | 3450 | 225 | 190-220 | 5°-9° | 5° | Φ420×220 | 8.0-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 11.00-20 |
| FSCS100AWS1 | 2020 | 100000 | 1100 | 1550 | 3786 | 255 | 190-220 | 7° | 6° | Φ420×220 | 8.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 12.00-20 |
◪ 1.The suspension is made from durable parts. Our efficient quality control system can ensure that our products can work normally even in very bad working conditions.
◪ 2.Excellent maneuverability is available for our cantilever suspension.
◪ 3.The well designed spinning suspension pedestal has ensured the excellent height difference on cross-country conditions.
◪ 4.We can provide custom trailer suspension solution according to your requirements. Just contact us at any time.
Company Features
1. Shandong Fuhua Axle Co., Ltd is famous for the remarkable production characteristics.
2. Our company has state-of-the-art manufacturing facilities. Modern and rational manufacturing methods, as well as extensive quality management, form the basis for technically perfected and economically high-grade products.
3. We are a great example of social and environmental responsibility in approaches to sustainability in a corporate context. Sustainability efforts start in manufacturing lines, such as saving water and electricity consumption and reducing discharges.
