FUSAI oem odm cantilever rear suspension 5 star service1
1. The whole production process of FUSAI cantilever rear suspension relies on our advanced production technology. This product is suited for trailers used in a wide range of industries like military transportation, engineering projects, forestry, and chemical production
2. While being functional, this piece of furniture is a good choice for decorating a space if one doesn't want to spend money on expensive decorative items. The friction coefficient of the product has been tweaked for the lowest abrasion
3. This product is made through processes that involve rigorous quality testing. Processed by die forging and thermal treatment, the product boasts high strength and excellent stability
4. Many customers have given us the positive feedback of the product regarding its durability, overall performance, economic benefits. It comes as a final product of our experience accumulated for more than ten years in manufacturing trailers parts

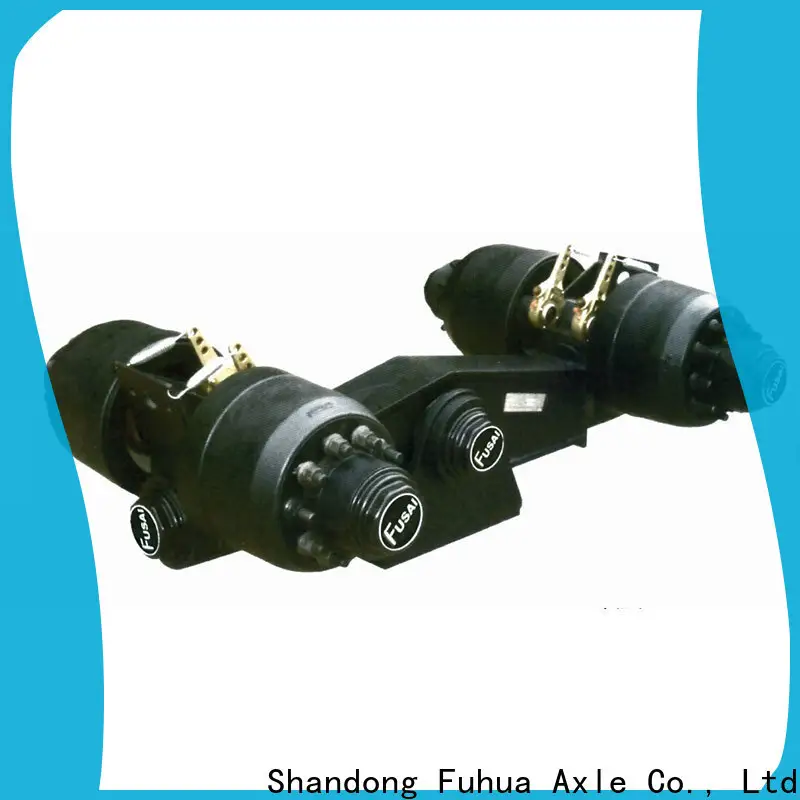

The cantilever suspension is mainly used as the connecting parts between trailer axle and suspension. Generally, anti-wear sliding bearings (with copper bush or cast iron bush), instead of leaf springs, are used as the couplers and supporting devices. It is mainly used as super heavy duty suspension for lowbed trailer. Our cantilever suspension works well on very rough ground for hauling heavy loads. The specially designed components and low abrasion wiggling suspension pedestal can guaranteed the good transverse and longitude axle compensation on bad road conditions. This kind of trailer suspension has been widely used in many fields like military industry, engineering project, forestry, oil industry, chemical production, and so on. Our technical team can design and manufacture custom cantilever suspension according to your application.
Two-Axle Cantilever Suspension | |||||||||||||||
Model | Central Distance(mm) | Rated Load(kg) | Track(mm) | Wheel Base(mm) | Total Width(mm) | E(mm) | Central Height(mm) | α | β | Brake Size | Wheel Fixing | Tyre | |||
Type | P.C.D | H | Stud | ||||||||||||
FSCS40ANS1 | 1540 | 40000 | 815 | 1220 | 2860 | 220 | 380 | 9° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 8.25-15 |
FSCS40AWS1 | 1600 | 40000 | 865 | 1220 | 2980 | 220 | 190-220 | 7°-9° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 8.25-15 |
FSCS60ANS1 | 1540 | 60000 | 815 | 1362 | 2860 | 220 | 380 | 7° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 407 |
| FSCS60AWS1 | 1600 | 60000 | 865 | 1362 | 2965 | 235 | 190-220 | 7°-9° | 6° | Φ420×180 | 6.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 8.25-20 |
| FSCS70ANS1 | 1540 | 70000 | 880 | 1362 | 2860 | 220 | 335 | 6° | 6° | Φ311×190 | 6.5-15 | Φ225 | Φ176 | 10－M22×1.5 ISO | 413 |
| FSCS70AWS1 | 1700 | 70000 | 900 | 1362 | 3190 | 210 | 190-220 | 7°-9° | 5° | Φ420×180 | 7.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 9.00-20 |
| FSCS80AN1 | 1840 | 80000 | 965 | 1550 | 3450 | 225 | 190-220 | 5°-9° | 5° | Φ420×220 | 8.0-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 11.00-20 |
| FSCS100AWS1 | 2020 | 100000 | 1100 | 1550 | 3786 | 255 | 190-220 | 7° | 6° | Φ420×220 | 8.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 12.00-20 |
◪ 1.The suspension is made from durable parts. Our efficient quality control system can ensure that our products can work normally even in very bad working conditions.
◪ 2.Excellent maneuverability is available for our cantilever suspension.
◪ 3.The well designed spinning suspension pedestal has ensured the excellent height difference on cross-country conditions.
◪ 4.We can provide custom trailer suspension solution according to your requirements. Just contact us at any time.
Company Features
1. Over years of marketing, we have established a cooperative relationship with a number of customers and won trustworthy from them. This is evidence of our business strength.
2. We focus on long-term business partnerships with a small number of top-performing suppliers. We expect our suppliers to deliver products that meet our minimum requirements and to be willing to continuously work with us towards improvements.
