factory directly supply cantilever suspension kit manufacturer for merchant
-
v s
1. FUSAI cantilever suspension design is a comprehensive product of various technologies. It is developed, manufactured and processed under the theoretical guidance of mechanical engineering, microelectronics, etc.
2. The product has good stain-resistant performance. Its sleek surface has been finely processed to guard against any contamination.
3. It has good colourfastness. It goes through high-cost dying processes which enable the colors to hold well for many years.
4. Shandong Fuhua Axle Co., Ltd has accumulated good management experience and formed good service concept.

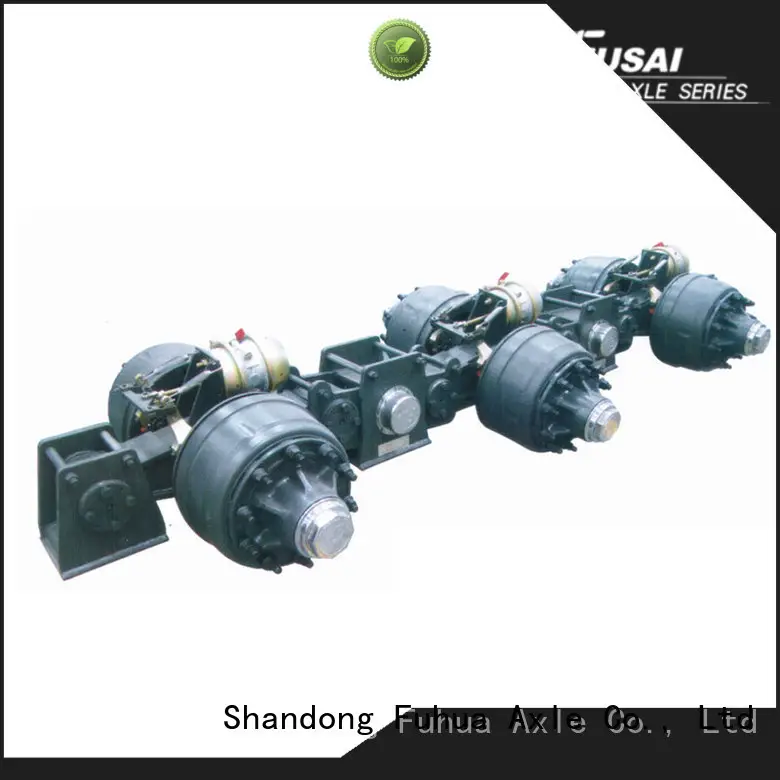

The cantilever suspension is mainly used as the connecting parts between trailer axle and suspension. Generally, anti-wear sliding bearings (with copper bush or cast iron bush), instead of leaf springs, are used as the couplers and supporting devices. It is mainly used as super heavy duty suspension for lowbed trailer. Our cantilever suspension works well on very rough ground for hauling heavy loads. The specially designed components and low abrasion wiggling suspension pedestal can guaranteed the good transverse and longitude axle compensation on bad road conditions. This kind of trailer suspension has been widely used in many fields like military industry, engineering project, forestry, oil industry, chemical production, and so on. Our technical team can design and manufacture custom cantilever suspension according to your application.
Three-Axle Cantilever Suspension | |||||||||||||||||
Model | Central Distance(mm) | Rated Load(kg) | Track(mm) | Wheel Base(mm) | Total Width(mm) | B(mm) | E(mm) | F(mm) | Central Height(mm) | F&B Swing | L&R Swing | Brake Size | Wheel Fixing | Tyre | |||
Type | P.C.D | H | Stud | ||||||||||||||
FSCS100ANS1 | 1800 | 100000 | 965 | 1220 | 3385 | 220 | 1320 | 1090 | 180-340 | 7° | 5° | Φ420×180 | 7.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 10.00-15 |
FSCS100ANS2 | 1600 | 100000 | 900 | 1320 | 3000 | 200 | 1220 | 990 | 180-340 | 7° | 5° | Φ420×180 | 6.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 8.25-20 |
FSCS100ANS3 | 1730 | 100000 | 940 | 1320 | 3260 | 200 | 1320 | 1090 | 180-340 | 7° | 5° | Φ420×180 | 67.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 9.00-20 |
| FSCS150ANS1 | 1935 | 150000 | 1055 | 1320 | 3650 | 220 | 1320 | 1090 | 220-380 | 7° | 5° | Φ420×220 | 8.5-20 | Φ335 | Φ281 | 10－M22×1.5 ISO | 12.00-20 |
◪ 1.The suspension is made from durable parts. Our efficient quality control system can ensure that our products can work normally even in very bad working conditions.
◪ 2.Excellent maneuverability is available for our cantilever suspension.
◪ 3.The well designed spinning suspension pedestal has ensured the excellent height difference on cross-country conditions.
◪ 4.We can provide custom trailer suspension solution according to your requirements. Just contact us at any time.
Company Features
1. With years of development, Shandong Fuhua Axle Co., Ltd has demonstrated strong competitive edge in designing and manufacturing cantilever suspension design in the industry.
2. Shandong Fuhua Axle Co., Ltd has a group of skilled professionals.
3. We strive for customer satisfaction via a powerful combination of people and plant, innovative techniques and an integrated approach from prototype to production. Check it! All of our business activities and production practices comply with environmental regulations. We will spare no effort to reduce our negative environmental influence during our production activities.
