small trailer axle factory for sale
1. FUSAI trailer parts supply is delicately treated to ensure the perfection of every detail.
2. The product is able to run stably. It is not prone to cause some dangerous effects such as electric current, electric arc, electromagnetic field, and static electricity.
3. This product can carry different weights of the human body, and it can naturally adapt to any sleeping posture with the best support.
4. For all things large and small, this product features large compartments to fit people's daily essentials. It can keep all items within easy reach.
American Outboard 11T | ||||||||||||
Axle Size | Max.Capacity(kgs) | Bearing | TR Track (mm) | Brake Size | AC Center Distance Of Brake Chambe(mm) | Wheel Fixing P.C.D×H | Criterion | Axle Tube (mm) | CL-Spline No.(mm) | Weight (kg) | Recommended Wheel | OL Total Length (mm) |
FSA11AWR1 | 11000 | HM518445/10 | 1820 | Φ420×180 | 390 | Φ285.75×Φ221 | 8－M20×1.5 JAP | ○127 | 588-37齿 | 298 | ≧7.50V-20 | ≈2183 |
FSA11AWR2 | 11000 | HM518445/10 | 1820 | Φ420×180 | 390 | Φ335×Φ281 | 10－M22×1.5 ISO | ○127 | 588-37齿 | 300 | ≧7.50V-20 | ≈2183 |
FSA11AWS1 | 11000 | HM518445/10 | 1840 | Φ420×180 | 410 | Φ285.75×Φ221 | 10－M20×1.5 JAP | □127 | 588-37齿 | 310 | ≧7.50V-20 | ≈2203 |
FSA11AWS2 | 11000 | HM518445/10 | 1840 | Φ420×180 | 410 | Φ335×Φ281 | 10－M22×1.5 ISO | □127 | 588-37齿 | 310 | ≧7.50V-20 | ≈2203 |
| FSA11AWS3 | 11000 | HM518445/10 | 1840 | Φ420×180 | 410 | Φ285.75×Φ221 | 10－M20×1.5 JAP | □150 | 588-37齿 | 335 | ≧7.50V-20 | ≈2203 |
| FSA11AWS4 | 11000 | HM518445/10 | 1840 | Φ420×180 | 410 | Φ335×Φ281 | 10－M22×1.5 ISO | □150 | 588-37齿 | 335 | ≧7.50V-20 | ≈2203 |

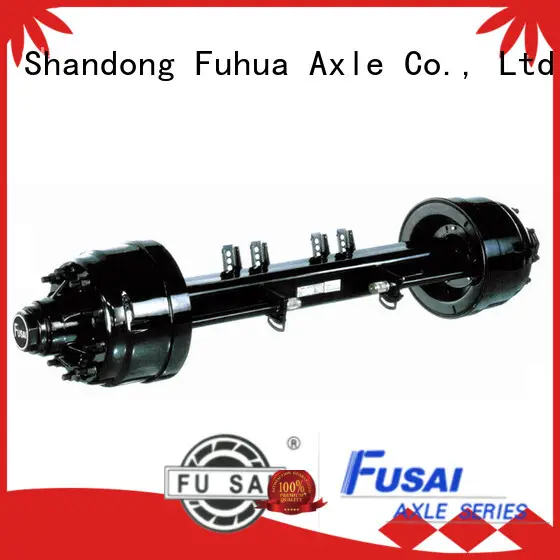

◪1.The axle body and the axle head of our American type trailer axle are manufactured as one piece with high quality low alloy seamless steel pipe using thermal extrusion forming technique (Figure 1A). The metal fiber in the axle body keeps its original streamline (Figure 1B). Thus the axle body can get high strength and loading capacity, as well as long service life.
◪2. The American type trailer axle, after being tempered, has an ideal grain size (Grade 7 or Grade 8). The bearing position is treated by medium-frequency hardening technique, making it highly fatigue resistant.
◪3.. Due to the adoption of advanced one-piece thermal extrusion forming technique, our axle is lighter than other products with the same loading capacity. The dynamic factor this trailer accessory is higher than 2.5, making this axle more cost effective.
◪4.The eco-friendly non-asbestos brake shoe is adopted for our American type trailer axle. Due to our high precision processing, the braking system is more stable and efficient, while the service life is also longer.
◪5. The camshaft comes with special sealing element, ensuring no lubricating grease will enter the drum brake. Thus the driving safety can be enhanced.
◪6.The latest sealing wheel hub cover comes with an O-type seal ring whose sealing performance is much better.
◪7.We have adopted a designing solution for our American type trailer axle in accordance with the international standards, so all the accessories are interchangeable. The usage is mature convenient and economical.
◪8.Various kinds and models of axles are available. Custom products can also be provided as per your demands.
Company Features
1. We aim to be number one in the industry of small trailer axle .
2. With the realization of developing trailer parts supply,FUSAI has successfully produced trailer axle kit which gained high comments.
3. It is the lifelong pursuit of every FUSAI person to build the company into the No. 1 trailer hitch parts brand. Get more info! Shandong Fuhua Axle Co., Ltd aims to create a new brand of trailer axle parts , creating a new market space. Get more info! Our goal is to be the leading heavy duty trailer axles manufacturer. Get more info!
