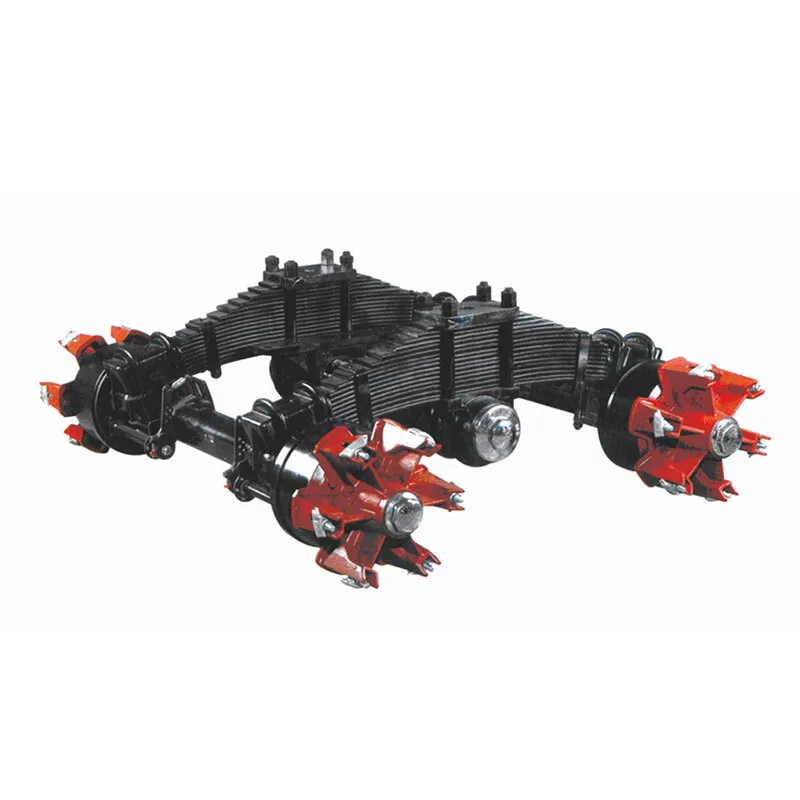

Low Frame Bogie Suspension

Brand:

Fusai

MOQ:

＞10pcs

Place of Origin:

Qingdao, China

Delivery Time:

20 Days

Payment Terms:

T/T

Inquiry

Write a Review

Product Information

Low Frame Bogie Suspension

High Frame Bogie Suspension
Our bogie suspension, as a trailer suspension system, comes in various types, including high frame type, low frame type, cantilever type, and so on. It features simple, sturdy, and durable structure, and is in normal height. The low frame type suspension is suitable for normal cars, as well as high clearance vehicles due to the great stability during the braking. Besides, our technical service team can also help you choose the right model. If you need special products, our technical team will design the proper bogie suspension according to your requirements. Our annual production for suspension is 18,000 sets, which means short lead time. In the vehicle suspension industry, we have accumulated more than 10 years of experience. A complete range of production machines and testing equipment have been introduced to ensure the excellent and consistent quality of our bogie suspension.

Product parameters

Low Frame Bogie Suspension
Type of Suspension	Max.Capacity (kgs)	Spring Center(mm)	Height of pedestal(mm)	Wheel Base(mm)	Axle Model	Track(mm)	Recommended Wheel	Weight (kgs)
FSLS24GNS1	24000	980	176	1400	FSA12GNS3	1840	7.50V-20	1725
FSLS24GNS2	24000	980	176	1400	FSA12GFS1	1870	8.50V-24	1835
FSLS28GNS1	28000	900	200	1550	FSA14GNS4	1850	8.00V-20	2158
FSLS28GNS2	28000	900	200	1550	FSA14GFS1	1840	8.50V-24	2272
FSLS32GNS1	32000	900	200	1550	FSA16GNS2	1840	8.50V-20	2235
FSLS32GNS2	32000	900	200	1550	FSA16GFS1	1850	8.50V-24	2315
FSLS36GNS1	36000	900	233	1550	FSA18GNS1	1850	8.50V-20	2335
FSLS36GNS2	36000	900	233	1550	FSA18GFS1	1870	8.50V-24	2345

Product Feature

◪ 1.Central axle pedestal
The central axle is made of premium low alloy seamless steel pipe, and processed by tempering and various high precision processing techniques. Thus the axle’s strength is greatly enhanced. The panel is made of high-strength low alloy steel plate by punch forming technique, so it is strong and durable. Other supporting accessories are all welded by high-strength low alloy plate. The central axle pedestal comes with stiffening girder in it, making the whole structure of our bogie suspension highly resistant to the twisting force and bending force.
◪ 2. Central bearing pedestal
The anti-wear sliding bearing (with copper bush) embedded design is adopted. Thus the central axle and the bearing are more stable and have longer service life.
◪ 3.Leaf spring pedestal
The nodular cast iron is used for the leaf spring pedestal of our bogie suspension to make it more anti-wear and impact resistant. The coupler between leaf spring pedestal and leaf spring assembly comes in rubber inner-bushing and separating design, which can effectively lower the abrasion coefficient between the leaf spring and spring pedestal, and make the service life of the two components longer.
◪ 4. Leaf spring
The leaf spring is made of high-strength alloy leaf spring, and processed by advanced European processing techniques. The spring of our bogie suspension features high strength, great durability and is highly interchangeable.
◪ 5. Simple structure
Our bogie suspension has a simple and compact structure. It mainly comprise of five components, including Central axle pedestal, central bearing pedestal assembly, leaf spring pedestal assembly, leaf spring pedestal, and axel. It is mounted onto the suspension by bolted connection, making the later maintenance and repairing quite simple and convenient.
◪ 6.The bogie suspension has low requirements for the road surface because of its great adaptability.
