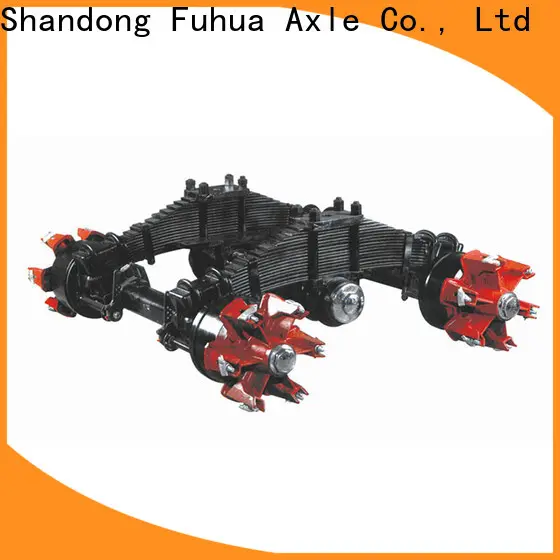

FUSAI customized trailer bogie great deal for wholesale1
1. The materials for FUSAI trailer suspension parts are selected through direct experience and selected from the best and most innovative materials on the market. This product comes in various specifications for satisfying different needs
2. Our trailer bogie meets up with international standards for quality and you can be assured of it. The product has found its way to users of trailers in tens of countries
3. Our clients greatly trust the product for its unmatched quality and excellent performance. This product is delivered along with our specialized grease, which facilitates its maintenance
4. As a result of the effort, this product meets the strictest performance criteria. The product delivers satisfying performance in harsh conditions, be it in freezing Siberia or scorching Mid-East countries
5. It has more comprehensive and reliable functions compared with other products. It introduces either alloy steel or low-carbon steel as raw materials
Our bogie suspension, as a trailer suspension system, comes in various types, including high frame type, low frame type, cantilever type, and so on. It features simple, sturdy, and durable structure, and is in normal height. The low frame type suspension is suitable for normal cars, as well as high clearance vehicles due to the great stability during the braking. Besides, our technical service team can also help you choose the right model. If you need special products, our technical team will design the proper bogie suspension according to your requirements. Our annual production for suspension is 18,000 sets, which means short lead time. In the vehicle suspension industry, we have accumulated more than 10 years of experience. A complete range of production machines and testing equipment have been introduced to ensure the excellent and consistent quality of our bogie suspension.
Low Frame Bogie Suspension | ||||||||
Type of Suspension | Max.Capacity (kgs) | Spring Center(mm) | Height of pedestal(mm) | Wheel Base(mm) | Axle Model | Track(mm) | Recommended Wheel | Weight (kgs) |
FSLS24GNS1 | 24000 | 980 | 176 | 1400 | FSA12GNS3 | 1840 | 7.50V-20 | 1725 |
FSLS24GNS2 | 24000 | 980 | 176 | 1400 | FSA12GFS1 | 1870 | 8.50V-24 | 1835 |
FSLS28GNS1 | 28000 | 900 | 200 | 1550 | FSA14GNS4 | 1850 | 8.00V-20 | 2158 |
FSLS28GNS2 | 28000 | 900 | 200 | 1550 | FSA14GFS1 | 1840 | 8.50V-24 | 2272 |
| FSLS32GNS1 | 32000 | 900 | 200 | 1550 | FSA16GNS2 | 1840 | 8.50V-20 | 2235 |
| FSLS32GNS2 | 32000 | 900 | 200 | 1550 | FSA16GFS1 | 1850 | 8.50V-24 | 2315 |
| FSLS36GNS1 | 36000 | 900 | 233 | 1550 | FSA18GNS1 | 1850 | 8.50V-20 | 2335 |
| FSLS36GNS2 | 36000 | 900 | 233 | 1550 | FSA18GFS1 | 1870 | 8.50V-24 | 2345 |
◪ 1.Central axle pedestal
The central axle is made of premium low alloy seamless steel pipe, and processed by tempering and various high precision processing techniques. Thus the axle’s strength is greatly enhanced. The panel is made of high-strength low alloy steel plate by punch forming technique, so it is strong and durable. Other supporting accessories are all welded by high-strength low alloy plate. The central axle pedestal comes with stiffening girder in it, making the whole structure of our bogie suspension highly resistant to the twisting force and bending force.
◪ 2. Central bearing pedestal
The anti-wear sliding bearing (with copper bush) embedded design is adopted. Thus the central axle and the bearing are more stable and have longer service life.
◪ 3.Leaf spring pedestal
The nodular cast iron is used for the leaf spring pedestal of our bogie suspension to make it more anti-wear and impact resistant. The coupler between leaf spring pedestal and leaf spring assembly comes in rubber inner-bushing and separating design, which can effectively lower the abrasion coefficient between the leaf spring and spring pedestal, and make the service life of the two components longer.
◪ 4. Leaf spring
The leaf spring is made of high-strength alloy leaf spring, and processed by advanced European processing techniques. The spring of our bogie suspension features high strength, great durability and is highly interchangeable.
◪ 5. Simple structure
Our bogie suspension has a simple and compact structure. It mainly comprise of five components, including Central axle pedestal, central bearing pedestal assembly, leaf spring pedestal assembly, leaf spring pedestal, and axel. It is mounted onto the suspension by bolted connection, making the later maintenance and repairing quite simple and convenient.
◪ 6.The bogie suspension has low requirements for the road surface because of its great adaptability.
Company Features
1. Shandong Fuhua Axle Co., Ltd has always been known for manufacturing trailer bogie. We have a long history of delivering top value for customers. Our manufacturing factory is located proximal to the airport. This allows our finished products to quickly and conveniently go to the market and to greatly reduce transportation costs.
2. Our business is backed by an experienced design team. They have years of clear understanding of design principles and can provide enough flexibility in design services.
3. Our company houses a pool of candidates who are highly qualified in customer services. They have gone through professional training and are able to provide advice and are skillful in managing the negative emotion of customers. We think sustainability is an important part of our business. We’re dedicated to promoting environmentally sound production practices that help minimize waste and reduce harmful emissions to the air, water and land.
