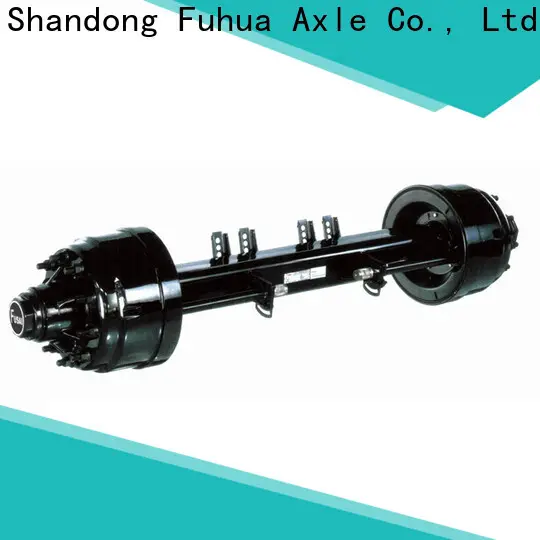

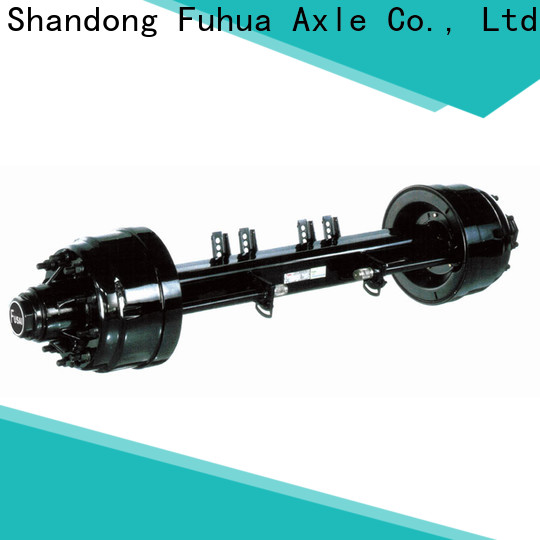

FUSAI custom trailer hitch parts brand1
1. FUSAI trailer axle spindle is of scientific design. Designers will do detailed calculations on its bearing capacity and space area considering the weight and volume of the goods. It comes as a final product of our experience accumulated for more than ten years in manufacturing trailers parts
2. The product has high commercial value to meet the demanding requirements of customers around the world. This product is suited for trailers used in a wide range of industries like military transportation, engineering projects, forestry, and chemical production
3. The product is tested with the vigilance of our skilled professionals who have a clear understanding of the quality standards set by the industry. The product, when custom made, will be delivered within 60 days
4. This product guarantees high quality and excellent performance, as all factors affecting its quality and production performance are immediately detected and then corrected by our trained QC personnel. It is suited for manufacturers of trailers, trailers rental company or logistics companies
5. The product is of high quality and can withstand stringent quality and performance tests. The product is manufactured and processed with cutting-edge computer numeric control technology
American Outboard 16T | ||||||||||||

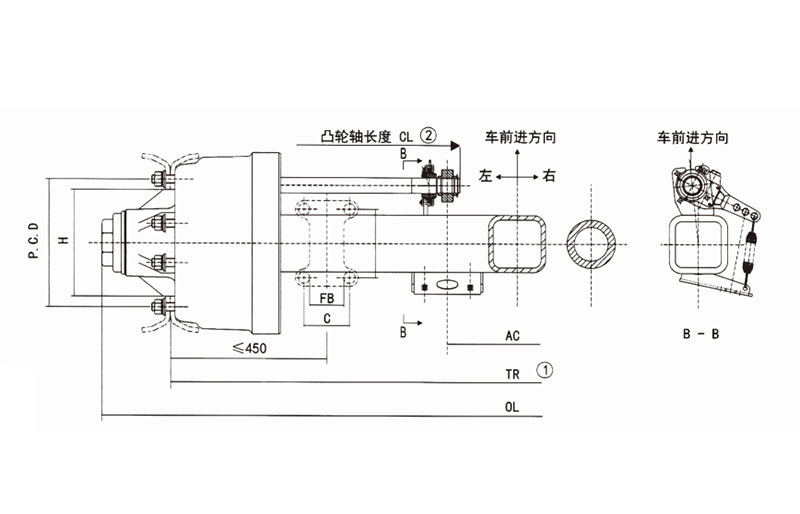

Axle Size | Max.Capacity(kgs) | Bearing | TR Track (mm) | Brake Size | AC Center Distance Of Brake Chambe(mm) | Wheel Fixing P.C.D×H | Criterion | Axle Tube (mm) | CL-Spline No.(mm) | Weight (kg) | Recommended Wheel | OL Total Length (mm) |
FSA16AWR1 | 16000 | HM518445/10 | 1840 | Φ420×180 | 390 | Φ335×Φ281 | 10－M22×1.5 ISO | ○127 | 588-37齿 | 418 | ≧8.00V-20 | ≈2198 |
FSA16AWS1 | 16000 | HM518445/10 | 1840 | Φ420×180 | 390 | Φ335×Φ281 | 10－M22×1.5 ISO | □127 | 588-37齿 | 385 | ≧8.00V-20 | ≈2198 |
FSA16AWS2 | 16000 | HM518445/10 | 1850 | Φ420×220 | 354 | Φ335×Φ281 | 10－M22×1.5 ISO | □127 | 588-37齿 | 392 | ≧8.00V-20 | ≈2208 |
FSA16AWS3 | 16000 | HM518445/10 | 1850 | Φ420×180 | 400 | Φ335×Φ281 | 10－M22×1.5 ISO | □150 | 588-37齿 | 415 | ≧8.00V-20 | ≈2208 |
| FSA16AWS4 | 16000 | HM518445/10 | 1850 | Φ420×220 | 354 | Φ335×Φ281 | 10－M22×1.5 ISO | □150 | 588-37齿 | 422 | ≧8.00V-20 | ≈2218 |
◪1.The axle body and the axle head of our American type trailer axle are manufactured as one piece with high quality low alloy seamless steel pipe using thermal extrusion forming technique (Figure 1A). The metal fiber in the axle body keeps its original streamline (Figure 1B). Thus the axle body can get high strength and loading capacity, as well as long service life.
◪2. The American type trailer axle, after being tempered, has an ideal grain size (Grade 7 or Grade 8). The bearing position is treated by medium-frequency hardening technique, making it highly fatigue resistant.
◪3.. Due to the adoption of advanced one-piece thermal extrusion forming technique, our axle is lighter than other products with the same loading capacity. The dynamic factor this trailer accessory is higher than 2.5, making this axle more cost effective.
◪4.The eco-friendly non-asbestos brake shoe is adopted for our American type trailer axle. Due to our high precision processing, the braking system is more stable and efficient, while the service life is also longer.
◪5. The camshaft comes with special sealing element, ensuring no lubricating grease will enter the drum brake. Thus the driving safety can be enhanced.
◪6.The latest sealing wheel hub cover comes with an O-type seal ring whose sealing performance is much better.
◪7.We have adopted a designing solution for our American type trailer axle in accordance with the international standards, so all the accessories are interchangeable. The usage is mature convenient and economical.
◪8.Various kinds and models of axles are available. Custom products can also be provided as per your demands.
Company Features
1. FUSAI, being an industry leader in trailer hitch parts pays attention to the passion, and an understanding of customers. Our manufacturing is supported by the most advanced equipment. Investment is continuing to increase capacity, and more importantly, new capabilities to increase production flexibility.
2. We have established a highly qualified technician team. They are always involved in continuous product improvement and upgrade for clients. Their ability in this filed guarantees high-quality products.
3. Our manufacturing factory is located proximal to the airport. This allows our finished products to quickly and conveniently go to the market and to greatly reduce transportation costs. FUSAI wishes to be a leading role in the development of trailer axle parts industry. Get price!
