Disc brake axle series

Brand:

Fusai

MOQ:

＞10pcs

Place of Origin:

Qingdao, China

Delivery Time:

20 Days

Payment Terms:

T/T

Inquiry

Write a Review

Product Information

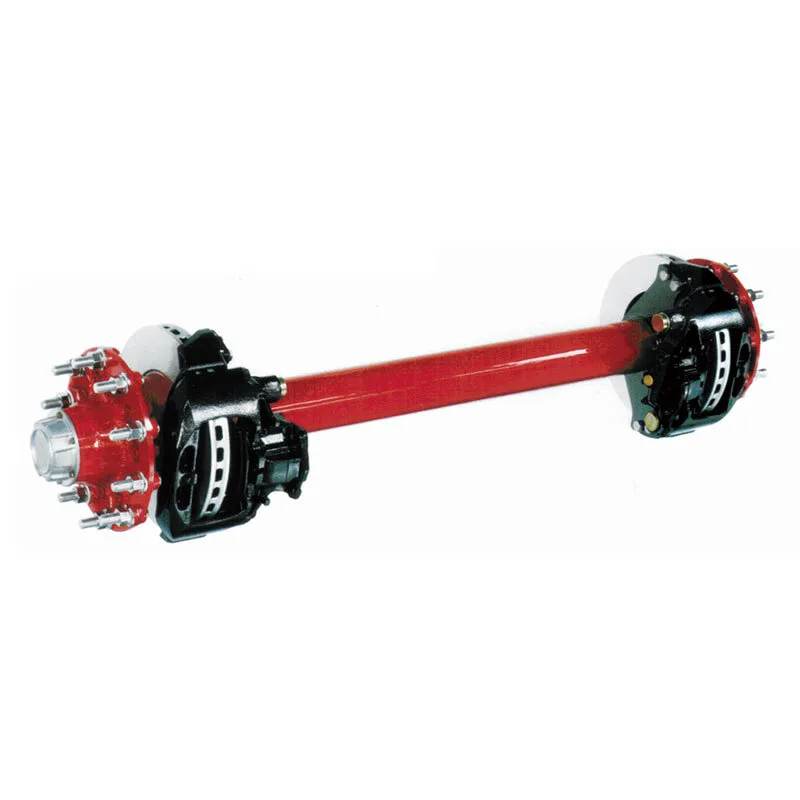

Disc brake axle series

The loading capacity of our American type trailer axle ranges from 11 tons to 20 tons. To provide high quality and consistent products and increase the productivity, we have introduced a range of advanced production machines, such as one-piece axle production line, CNC machining center, and so on. In addition, our senior technical team can provide custom axle for trailer according to your requirements for various parameters.

Product parameters

Disc-Brake Series Axle Specifications(American)
Axle Size		105(km/h)	TRTrack (mm)	Brake Size		Caliper	Wheel Fixing			Recommended Wheel	LP Total Length (mm)
Model No.	Axle Tube(mm)	105(km/h) Max. Capacity kg/lbs	TRTrack (mm)	Type	Size(mm)	WABCO	P.C.D×H	Criterion	ET	Recommended Wheel	LP Total Length (mm)
FSA13ADR1	127	9,000/20,000	1835	Disc	Φ375×45	PAN 19-1	Φ285.75×Φ221	8－M20×1.5 JAP	ETO	7.50V-20	~2046
FSA13ADR2	127	11,500/25,000	1816	Disc	Φ430×45	PAN 22-1	Φ285.75×Φ221	10－M22×1.5 ISO	ETO	8.00V-20	~2046
FSA13ADS1	127	11,500/25,000	1850	Disc	Φ430×45	PAN 22-1	Φ285.75×Φ221	10－M20×1.5 JAP	ETO	8.00V-20	~2046
FSA13ADS2	127	11,500/25,000	1850	Disc	Φ430×45	PAN 22-1	Φ335×Φ281	10－M22×1.5 ISO	ETO	8.00V-20	~2046
FSA13ADS3	150	13,000/29,000	1840	Disc	Φ430×45	PAN 22-1	Φ335×Φ281	10－M20×1.5 JAP	ETO	8.00V-20	~2202
Disc-Brake Series Axle Specifications (Euro.)
FSA13GDS4	146	9,000/20,000	2040	Disc	Φ430×45	PAN 22-1	Φ335×Φ280.8	10－M22×1.5 ISO	ET120	22.5×11.75	~2400
FSA13GDS5	146	9,000/20,000	2040	Disc	Φ375×45	PAN 19-1	Φ335×Φ280.8	10－M22×1.5 ISO	ET120	22.5×11.75	~2400
FSA13GDS6	146	9,000/20,000	2040	Disc	Φ430×45	PAN 22-1	Φ335×Φ280.8	10－M22×1.5 ISO	ET160	22.5×11.75	~2285
FSA13GDS4	146	9,000/20,000	2040	Disc	Φ375×45	PAN 19-1	Φ335×Φ280.8	10－M22×1.5 ISO	ET160	22.5×11.75	~2285
FSA13GDS5	146	9,000/20,000	2040	Disc	Φ430×45	PAN 22-1	Φ335×Φ280.8	10－M22×1.5 ISO	ETO	22.5×11.75	~2400
FSA13GDS6	146	9,000/20,000	2040	Disc	Φ375×45	PAN 19-1	Φ335×Φ280.8	10－M22×1.5 ISO	ETO	22.5×11.75	~2400

Product Feature

◪1.The axle body and the axle head of our American type trailer axle are manufactured as one piece with high quality low alloy seamless steel pipe using thermal extrusion forming technique (Figure 1A). The metal fiber in the axle body keeps its original streamline (Figure 1B). Thus the axle body can get high strength and loading capacity, as well as long service life.
◪2. The American type trailer axle, after being tempered, has an ideal grain size (Grade 7 or Grade 8). The bearing position is treated by medium-frequency hardening technique, making it highly fatigue resistant.
◪3.. Due to the adoption of advanced one-piece thermal extrusion forming technique, our axle is lighter than other products with the same loading capacity. The dynamic factor this trailer accessory is higher than 2.5, making this axle more cost effective.
◪4.The eco-friendly non-asbestos brake shoe is adopted for our American type trailer axle. Due to our high precision processing, the braking system is more stable and efficient, while the service life is also longer.
◪5. The camshaft comes with special sealing element, ensuring no lubricating grease will enter the drum brake. Thus the driving safety can be enhanced.
◪6.The latest sealing wheel hub cover comes with an O-type seal ring whose sealing performance is much better.
◪7.We have adopted a designing solution for our American type trailer axle in accordance with the international standards, so all the accessories are interchangeable. The usage is mature convenient and economical.
◪8.Various kinds and models of axles are available. Custom products can also be provided as per your demands.
