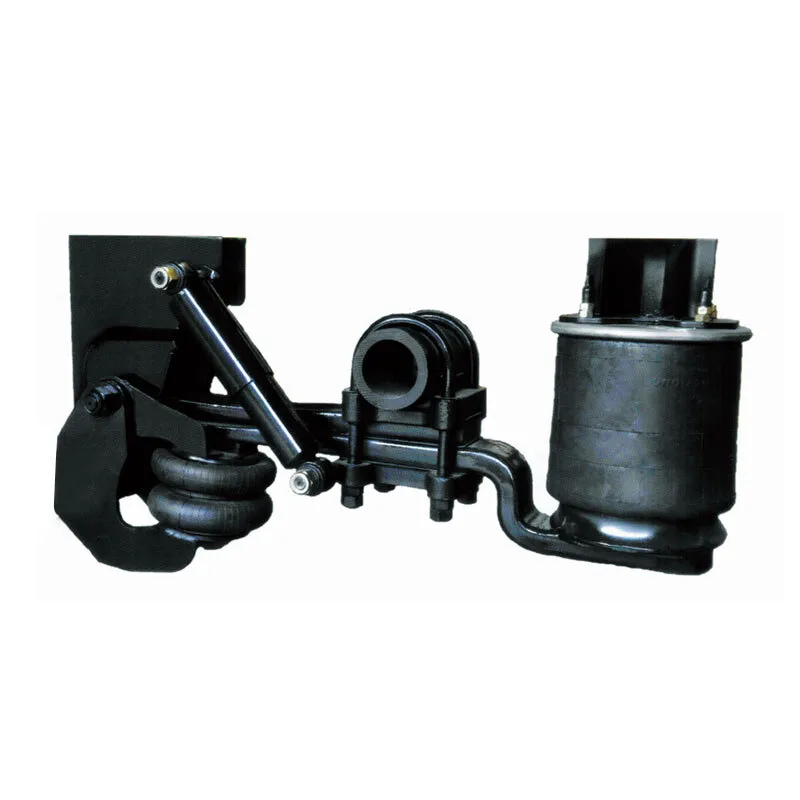

Air Suspension1

Brand:

Fusai

MOQ:

＞10pcs

Place of Origin:

Qingdao, China

Delivery Time:

20 Days

Payment Terms:

T/T

Inquiry

Write a Review

Product Information

Bogie Suspension
Our bogie suspension, as a trailer suspension system, comes in various types, including high frame type, low frame type, cantilever type, and so on. It features simple, sturdy, and durable structure, and is in normal height. The low frame type suspension is suitable for normal cars, as well as high clearance vehicles due to the great stability during the braking. Besides, our technical service team can also help you choose the right model. If you need special products, our technical team will design the proper bogie suspension according to your requirements. Our annual production for suspension is 18,000 sets, which means short lead time. In the vehicle suspension industry, we have accumulated more than 10 years of experience. A complete range of production machines and testing equipment have been introduced to ensure the excellent and consistent quality of our bogie suspension.

Product parameters

Air Suspension
Model	Axle Lift	Rated Load(kg)	Axle Beam(mm)	Leaf Spring(mm)	Air Bag Spec	L1(mm)	L2(mm)	H1(mm)	H2(mm)	H3(mm)
FSAS11ANR1	No	11000	Φ127	2-100×38	350	500	380	296	442	335
FSAS11ANR2	No	11000	Φ127	2-100×38	350	500	360	276	210	257
FSAS11ANR3	Yes	11000	Φ127	2-100×38	350/260	500	380	251	400	407
FSAS11ANS1	No	11000	□150	2-100×38	350	500	380	231	400	413
FSAS11ANS2	Yes	11000	□150	2-100×38	350/260	500	380	231	400	413
FSAS9GNR1	No	9000	Φ127	1-100×50	350	500	380	268	210	318
FSAS9GNR2	No	9000	Φ127	1-100×50	350	500	380	268	426	318
FSAS9GNR3	Yes	9000	Φ127	1-100×50	350/260	500	380	268	210	318
FSAS9GNR4	Yes	9000	Φ127	1-100×50	350/260	500	380	268	426	318
FSAS12GNR1	No	12000	Φ127	2-100×35	350	500	380	268	422	423
FSAS12GNR2	Yes	12000	Φ127	2-100×35	350/260	500	380	268	422	423
FSAS12GNS1	No	12000	□150	2-100×35	350	500	380	268	445	423
FSAS12GNS2	Yes	12000	□150	2-100×35	350/260	500	380	268	445	423

Product Feature

◪ 1.Central axle pedestal
The central axle is made of premium low alloy seamless steel pipe, and processed by tempering and various high precision processing techniques. Thus the axle’s strength is greatly enhanced. The panel is made of high-strength low alloy steel plate by punch forming technique, so it is strong and durable. Other supporting accessories are all welded by high-strength low alloy plate. The central axle pedestal comes with stiffening girder in it, making the whole structure of our bogie suspension highly resistant to the twisting force and bending force.
◪ 2. Central bearing pedestal
The anti-wear sliding bearing (with copper bush) embedded design is adopted. Thus the central axle and the bearing are more stable and have longer service life.
◪ 3.Leaf spring pedestal
The nodular cast iron is used for the leaf spring pedestal of our bogie suspension to make it more anti-wear and impact resistant. The coupler between leaf spring pedestal and leaf spring assembly comes in rubber inner-bushing and separating design, which can effectively lower the abrasion coefficient between the leaf spring and spring pedestal, and make the service life of the two components longer.
◪ 4. Leaf spring
The leaf spring is made of high-strength alloy leaf spring, and processed by advanced European processing techniques. The spring of our bogie suspension features high strength, great durability and is highly interchangeable.
◪ 5. Simple structure
Our bogie suspension has a simple and compact structure. It mainly comprise of five components, including Central axle pedestal, central bearing pedestal assembly, leaf spring pedestal assembly, leaf spring pedestal, and axel. It is mounted onto the suspension by bolted connection, making the later maintenance and repairing quite simple and convenient.
◪ 6.The bogie suspension has low requirements for the road surface because of its great adaptability.
